Akvaterm Smart Accumulator Tank

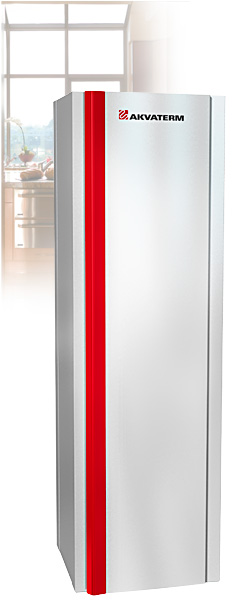

AKVA SMART - Heat and style for indoor spaces

AKVA SMART is an effective indoor accumulator tank that can be installed in low-rise properties.

It does not require a separate technical space and can be located, for example, in a home utility room.

Its dimensioning conforms to European standards.

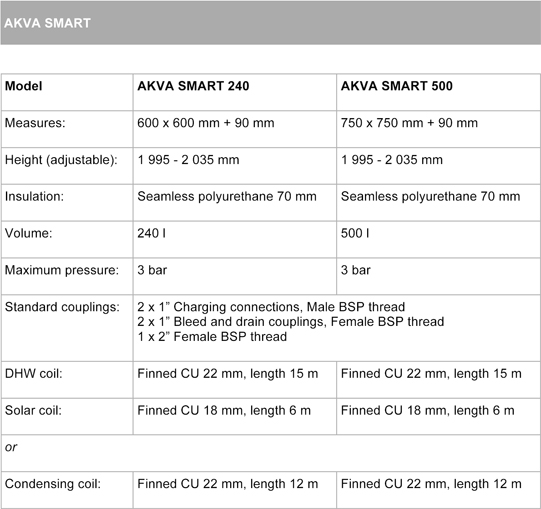

AKVA SMART 240
- 240 l
- 600 x 600 mm + 90 mm

AKVA SMART 500
- 500 l
- 750 x 750 mm + 90 mm




Available equipment:
- DHW mixing valve
- Four way valve
- Immersion heater 4,5 kW
- Drainvalve
- Laddomat 21-60
- Laddomat 11-30
- Motorized Valve: Laddomat ThermOmatic K
- Hooks for decorative panel
- Edge strip of the door with following colors:
• Red (standard)
• White
• Graphite gray



Connections:
1. From boiler
2. To boiler
3. Immersion heater (only top mount)
4. DHW mixing valve
5. Solar coil
6. From central heating
7. To central heating
8. Bleed

At bottom:
9. Drain / to Boiler

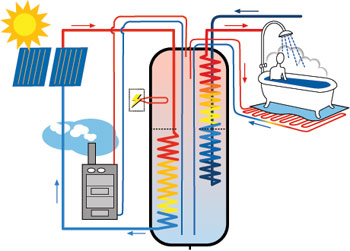

Principle connection diagrams
Energy for the tank is brought from the sun, a boiler if required, or other heat source.
Connection of air/water heat pump.
Energy transfer to the accumulator tank through the hot gas coil.
